GRIB Model

RAP North East Pacific - Rapid Refresh

Provider:National Centers for Environmental Prediction, NOAA (USA)
Model scope:Alaska and NE Pacific
Update frequency:every hour
Resolution:0.101°, 6.1nm, 11.2km
Model duration:21 forecasts starting at 1 hr, ending at 21 hrs
Parameters:pressure, wind, wind gust, rain, cloud, temperature, humidity, convection, vertical velocity, simulated radar, visibility, 250 mb, 500 mb, 850 mb
GRIB model date:Sat Apr 20 21:00:00 2019 UTC
Download date:Sat Apr 20 22:13:11 2019 UTC
Download delay:1hr 13min


RAP is a weather model NOAA runs hourly, producing short term forecasts. There are several RAP domains.

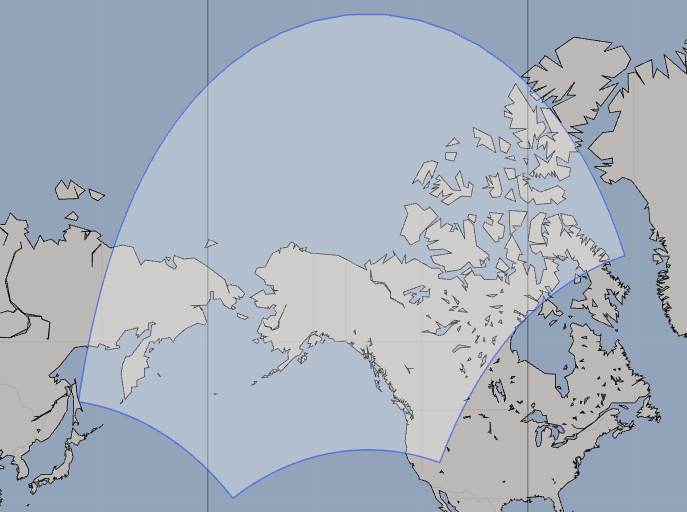

As can be seen from the image of this models domain, this model covers a large portion of the Alaskan waters, as well as a large portion of the Western seaboard of the North American coast. As this model is updated hourly, it should be very useful for planning day outings as well as watching rapidly changing weather in regions not covered by the HRRR (which is a higher resolution model.)

As RAP is a mesoscale model, it is able to model land and other features at a higher resolution than in a global model, leading to improved forecast accuracy.

For additional information, see:
